Alex's Street Blown 383 Stroker
|
|
|
|
MORE PICS
|
|
|
|
|
|
 |
|
|
|
 |
|
 |
|
|

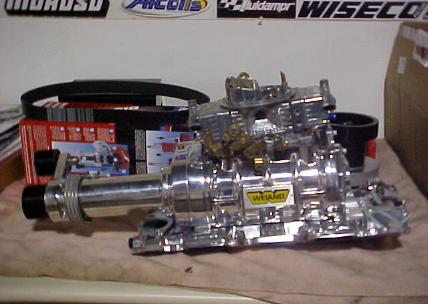

Weiand 144 street blower with a Holley 700
cfm double pumper, blower carb and a 10 lb
pulley. MSD distributor and MSD HVC coil and
Fluidampr.
|
|

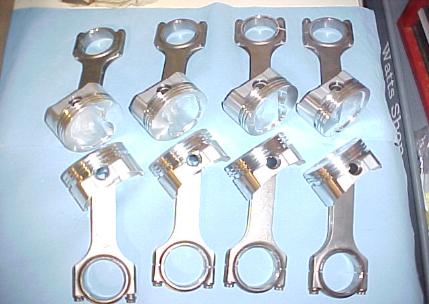

SRP extreme duty blower pistons with Eagle
6 inch rods.
|
|
|
|
|
|
 |
|
 |
|
|

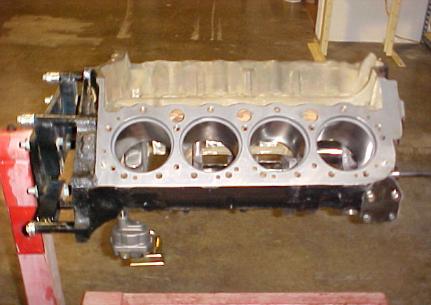

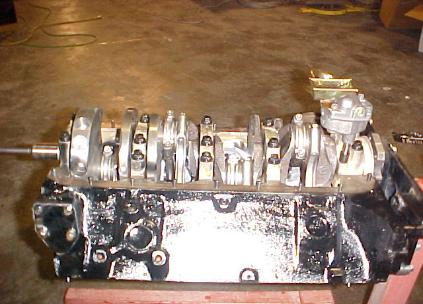

Thick wall truck block with a Scat 4340 forged
crank and ARP main bolts and Chevy Bowtie
main caps.
|
|

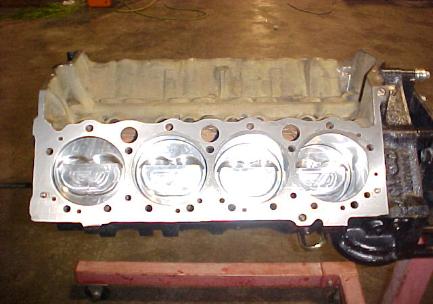

Block zero decked to pistons
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
File fit rings from Perfect Circle, moly top ring
and iron stepped second ring.
|
|

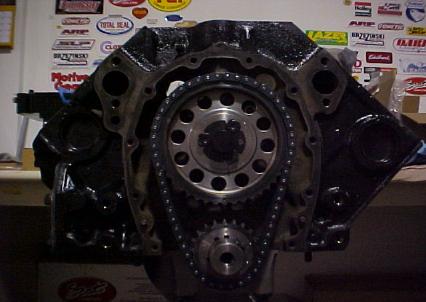

Cam installed with a Double Roller, Fully
Adjustable Timing Chain.
|
|
|
|
|
 |
 |
|
|

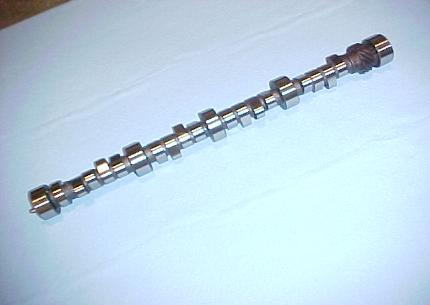

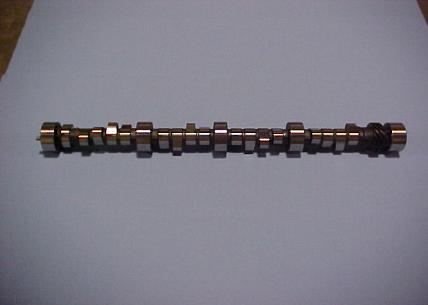

Alex's 383 blown stroker has a Watts Shop Performance Custom Grind Camshaft. This WSP
camshaft was cut specifically for this 383 blown stroker. Camshaft specs. are CLASSIFIED!!!!! The
camshaft is a Hydraulic Roller and is made of billet steel. The camshaft was designed to
maximize volumetric efficiency of the combination.
|
|
|
 |
|
 |
|
|

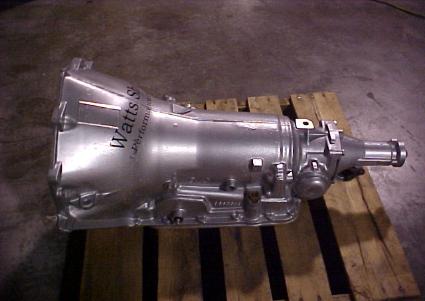

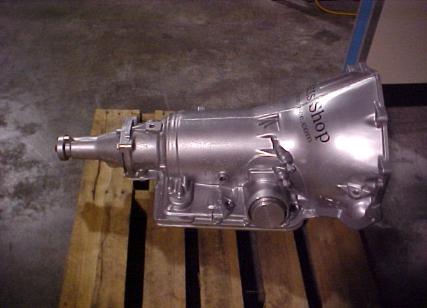

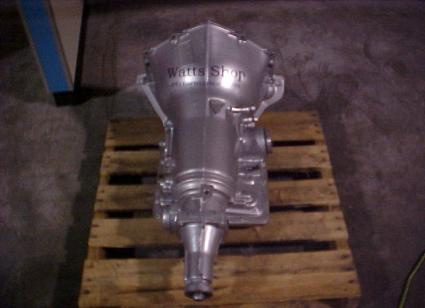

Alex's 700-R4 built to handle 650HP. 700-R4 consist of High Energy Clutches and kolve Steels,
special hard parts, Trans-Go Shift Reprogramming Kit and a bunch of Special Billet parts.
|
|
|
 |
|
|
|
 |
|
|

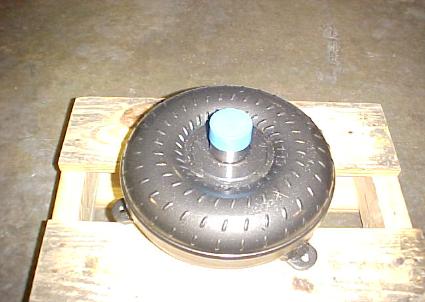

10 inch stall torque converter, matched to the
application.
|
|
